The DataLogger 100 is a top-notch solution for high-speed RF measurement, communication, and processing. At its core, it features a PCI104Z+ card using an AMD Zynq US+ MPSOC that houses two Sundance DSP FMC+ cards (FMCP-DAC12P0 and FMCP-ADC3P0 Module). This system provides 4 channels of high-speed ADC and DAC in a compact form factor.
There are custom designed enclosures to house the entire system. DSP9000 is one of such units that can be utilized for this purpose.
Features
- 4 channels of ADC up to 3GS/s, 14 bits
- 4 channels of DAC up to 12GS/s, 16 bits
- powerful AMD based XCZU11EG in FFVC1156 package
- FMC+ interface
- Compact PCIe104 form factor
Applications
- Data logging MIMO systemDefense and Aerospace
- Diversity multiband, multimode digital receivers
- 3G/4G, TD-SCDMA, W-CDMA, GSM, LTE, LTE-A
- Electronic test and measurement systems
- Phased array radar and electronic warfare
- DOCSIS 3.0 CMTS upstream receive paths
- HFC digital reverse path receivers
Suitable enclosure for DataLogger 100

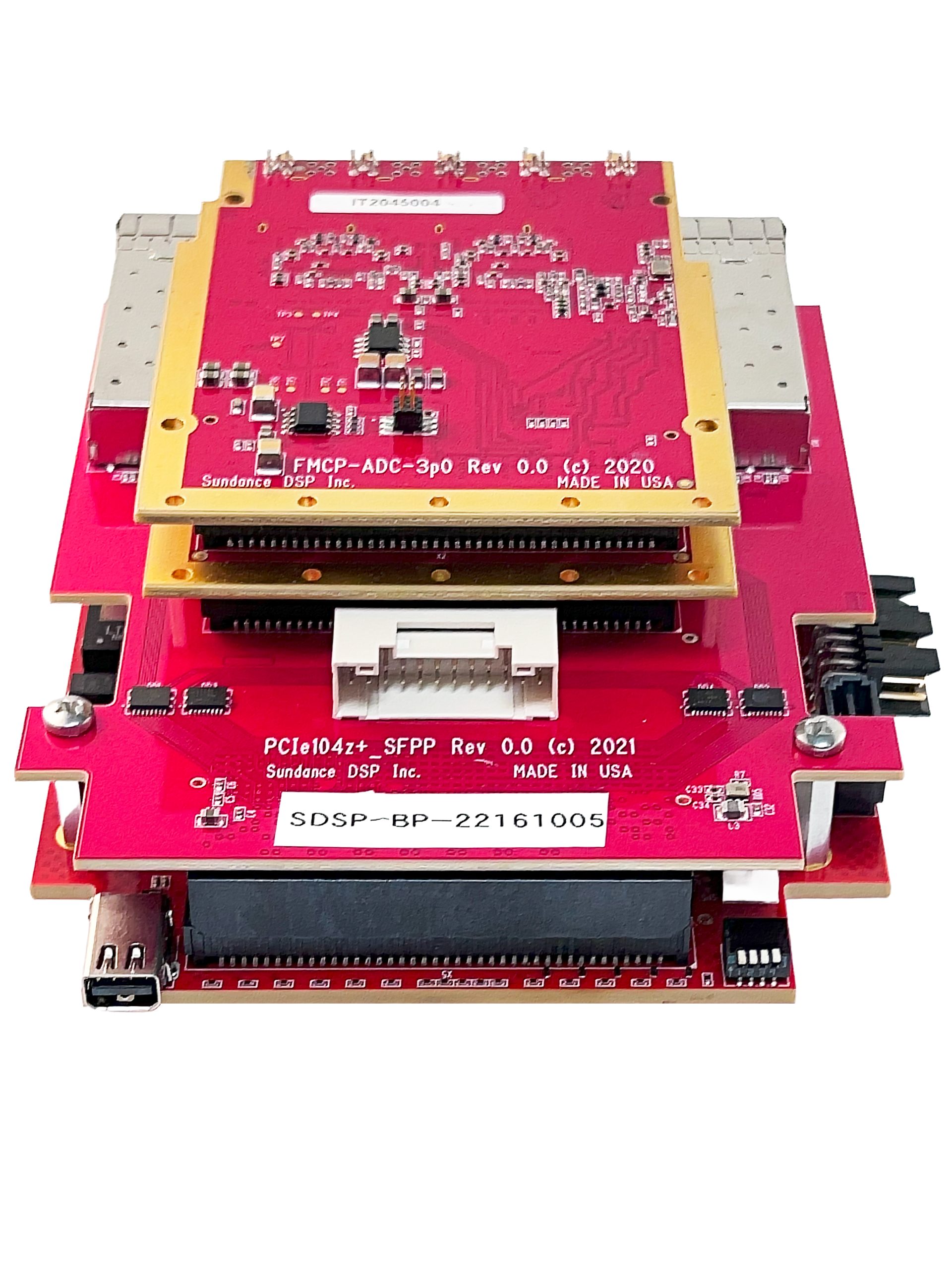

DataLogger 100 rear view

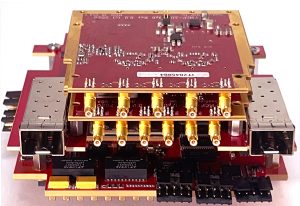

DataLogger 100 frontal view

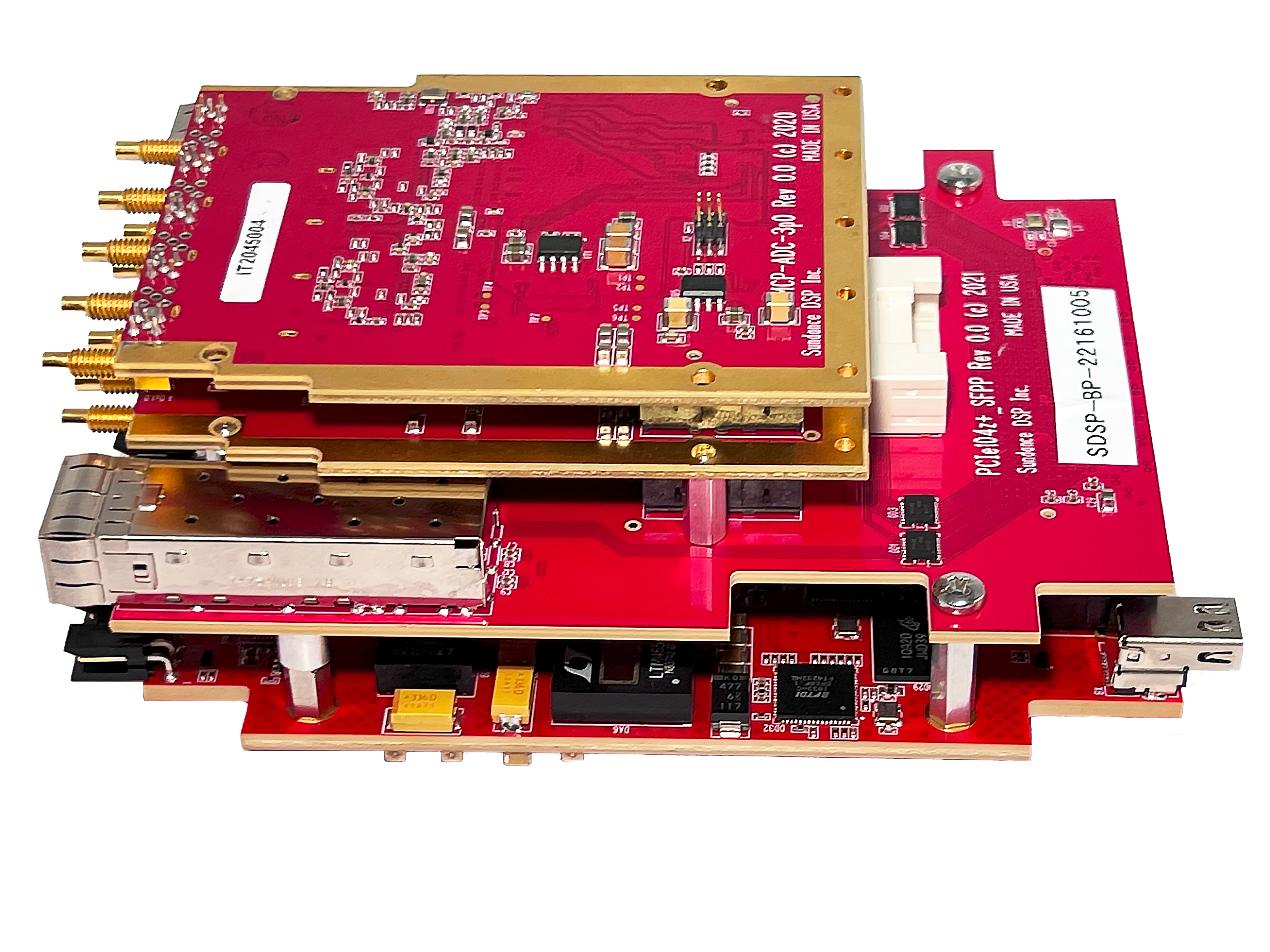

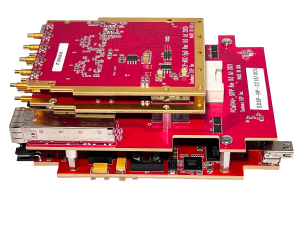

DataLogger 100 left side view
A complete BSP with capture of ADC data channels and transmission of DAC signals is providded. Application includes saving data to an attached SATA hard disk.
For pricing an availability please contact Sundance sales team.
