FMC-SDR400D

Features

• FMC LPC connector for interfacing with PCIe104z, EMC²-DP carrier, and other FMC compatible carrier cards.
• All electrical signals comply with Vita 57.1 FMC standard;
• 5 SSMC RF input connectors part number – 7110-1511-000, two inputs, two outputs, one clock input;
• The ADCs include 12-bit, Σ-Δ ADCs and adjustable sample
  rates that produce data streams from the received signals.
• RF Input specifications:
  • 50 ohm, single-ended;
  • Input frequency range 0.1 GHz – 6 GHz, input Bandwidth –up to 56 MHz;
  • Gain nonlinearity – ±3 dB*;
  • Channel gain mismatch – max 1 dB*;
  • Return loss >= 6 dB*;
  • Maximum allowable input power – 20 dBm;
• Input LNA HMC8410LP2FE; NF = 1.6 (0.3 to 3 GHz); Gain <= 17.5 dB (parameters from IC datasheet);
• The input tunable attenuator is HMC624A;
• RF Output specifications:
  • 50 Ohm, single-ended;
  • Output frequency range 50MHz – 6 GHz, TX EVM <= – 40 dB;
  • Maximal output power 28 dBm at 800 MHz, 26 dBm at 2.4 GHz;
  • Gain nonlinearity – ±4 dB*;
  • Channel gain mismatch – 1 dB max
• TX path contains 22 dB TX amplifier ADL5611;
• 1 external reference clock input connector;
• External reference clock input range – 10 – 80 MHz;
• Internal 40 MHz OCXO, +-100ppb, as an option can be used 40 MHz TCXO;
• Maximum Power consumption:
  • 12V – Max 0.6A;
  • 3V3 – Max 0.1A;
  • VADJ – Max 1A;
• VADJ supported – 1.8V, 2.5V.

Applications

• General Software Defined Radio
• Radio Astronomy
• Ship Tracking
• Aircraft Tracking
• GSM/3G/4G/LTE Network
• Wireless Communications
• Prototyping
• Signal Intelligence
• Medical wireless integration
• Radar

Click here for a 3D model of SDR400D

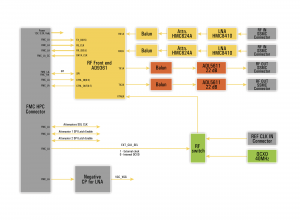

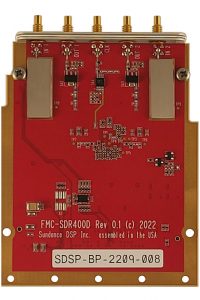

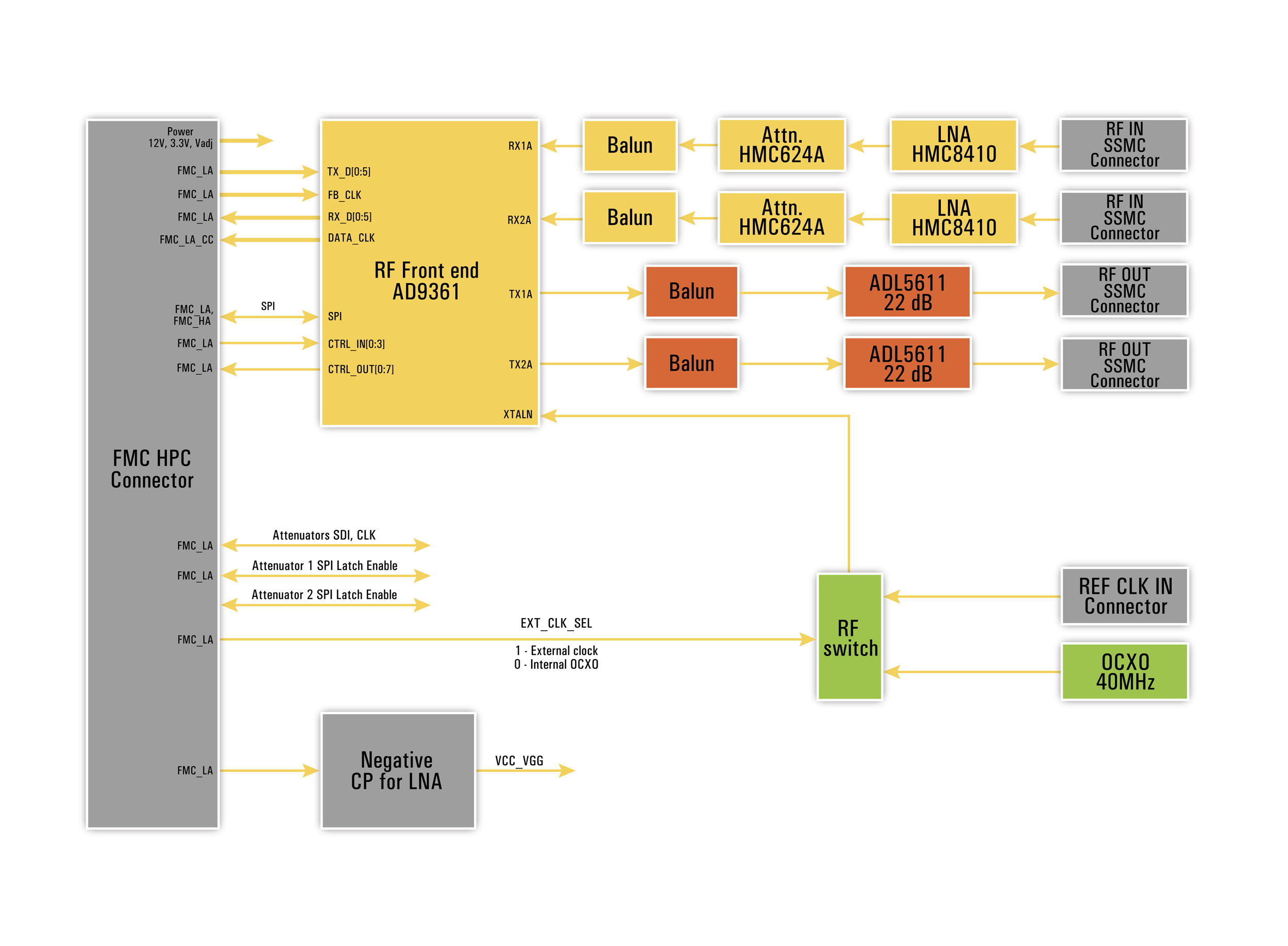

	Block Diagram	Component placement

The board will be supported by Sundance DSP IP Core for configuring the RF devices. There is an integrated solution including the PCIe104z carrier and the FMC-SDR400D available as well.

Contact Sundance DSP for integrations with other FMC carriers
