| Model name | IBOX-NVC1 |
| System | |
| CPU | Arm® Cotex®-A78AE v8.2 6C 1.5GHz 15W (Orin NANO) Arm® Cotex®-A78AE v8.2 6C 2.0GHz 25W (Orin NX) |
| GPU | 512-core NVDIA Ampere GPU w/16 Tensor Cores up to 20 TOPs (Orin NANO 4GB) 1024-core NVDIA Ampere GPU w/32 Tensor Cores up to 40-70 TOPs (Orin NANO 8GB/ Orin NX 8GB) |
| System memory | LPDDR5 64 bit 4GB on Module (Orin NANO 4GB) LPDDR5 128 bit 8GB on Module (Orin NANO 8GB/ NX) |
| I/O | |
| USB | 4 x USB 3.0 |
| COM | 1 x RS232/422/485, 1 x CAN (isolation) |
| LAN | 3 x LAN |
| Audio | N/A |
| Storage Support | |
| HDD | Support M.2 NVMe |
| Expansion | |
| Mini-PCIe | 1x M.2 M-Key 2280 support NVMe,1 x M.2 E-Key 2230 support WiFi |
| Power | |
| Power supply | DC 9-36V input, 2P Phoenix connector |
| Environmental | |
| Operating Temperature | -10°C ~ 60°C with 0.5m/s air flow |
| Storage Temperature | -20°C ~ 80°C |
| Relative Humidity | 0% ~ 90% (non-condensing) |
| Mechanical | |
| Construction | Aluminum extrusion and heavy-duty steel |
| Standard color | Dark Gray |
| Weight | 1.3Kg |
| Dimensions | 180mm(W) x 114mm(D) x59mm(H) |
Features
- Fanless Box system with NVIDIA® Jetson® Orin NANO/Orin NX, HDMI,CAN/4USB/ COM/3LAN(2 POE 802.3at) DC9-36V
- NVIDIA® Jetson Orin NANO/NX Module Computer
- 1 HDMI, 4 USB3.0, 1 COM , 1 CAN
- Trippe Gigabyte LAN ; include 2 802.3at POE
- Wide Range DC9-36V input with phoenix connector
- Wide temperature: -10°C ~ 60°C
- Compact edge AI computing
Applications
- Artificial Intelligence
- Artificial Reality / Virtual Reality ( AR/VR)

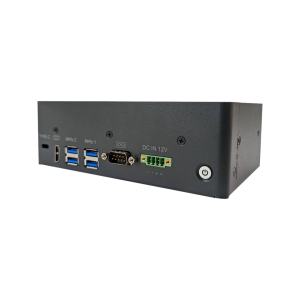

IBOX-NVC1
