PXIe840

Please note the design of this product is complete including the BSP. The product will need to be assembled before delivery.

PXIe840z, a Zynq Ultrascale+ based PXIe board.

PXIe840 complements Sundance DSP’s PXI800Z card, which was designed based on the Zynq Ultrascale+. Functionally the two boards are identical, except that the PXIe840 offers QSFP+ rather than a single SFP+. QSFP+ connector is available through the front panel.

A standard FMC+ module can be attached to PXIe840z and is accessible through the front panel. Additionally, the PS interfaces for the Zynq (USB3, SATA, Display port, etc.) can be accessed by attaching an IO card on the back of the module to make the PS interfaces available through the front panel also. This addition of a removable I/O card allows for more flexibility during development or integration. For example, it might be desirable to access PS interfaces for development phase, but not for production, the capability to control the access to PS interfaces for production boards will save cost and a PXIe slot.

All the PS interfaces are mounted on an IO-card, attached to the back of the PXIe840 module with a special-designed front panel.

PXIe840 plus an attached FMC+ will only take one slot in a PXIe chassis, and if the IO card is also attached, it will occupy two slots.

Features

  •  Based on Zynq US+ (XCZU7EV / XCZU7EG/ XCZU11EG / XCZU7CG in  C1156 package)
  • x1  HPC FMC+ expansion site with 16 GTH  at 16.3Gb/s transceivers and 56 LVDS IO pairs
  • Can use extra large FMC modules for custom application by using FMC+ carrier/interposer
  • Zynq Ultrascale+  MPSoC FPGA in C1156 package (XCZU7EV / XCZU7EG/ XCZU11EG / XCZU7CG)
  • 4GB of DDR4 to PL
  • Flash memory for user application bitstream
  • 32GB of eMMC
  • JTAG connector
  • System monitoring
  • x8 lanes PCIe Gen4
  • Video Codec H.265/H.264 with XCZU7EV
  • GTH, GTY, 100EMAC and  Interlaken, when fitted with XCZU11EG
  • for the ARM processors within the Zync following interfaces are available through an LSHM connector for using an IO card:
    • Display port
    • 2x SATA
    • Up to 8 GB of SDRAM to PS
    • 1 x USB3
    • 2 x USB2
    • 2 x SATA
    • 1 x RJ45

Applications

  • Defense
  • Medical Imaging
  • Machine Vision
  • Stereo vision
  • Artificial Reality /Augmented Reality
  • Control
  • Instrumentation and testing
  • Software Defined Radio
  • Data capture and logging





Additionally, depending on the device fitted (CG, EG or EV) to the PXIe800Z, different set of applications cane be better suited for the board as shown below. Different form factors of this design, based on PCIe and PCIe104, are also available which can be preferable for an application.

CG EG EV
•  Sensor Processing & Fusion
•  Motor Control
•  Low-cost Ultrasound
•  Traffic Engineering		 •  Flight Navigation
•  Missile & Munitions
•  Military Construction
•  Secure Solutions
•  Networking
•  Cloud Computing Security
•  Data Center
•  Machine Vision
•  Medical Endoscopy		 •  Situational Awareness
•  Surveillance/Reconnaissance
•  Smart Vision
•  Image Manipulation
•  Graphic Overlay
•  Human Machine Interface
•  Automotive ADAS
•  Video Processing
•  Interactive Display

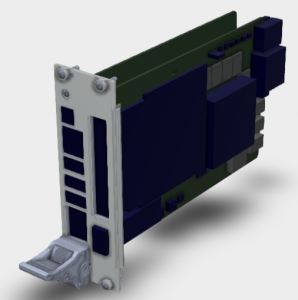

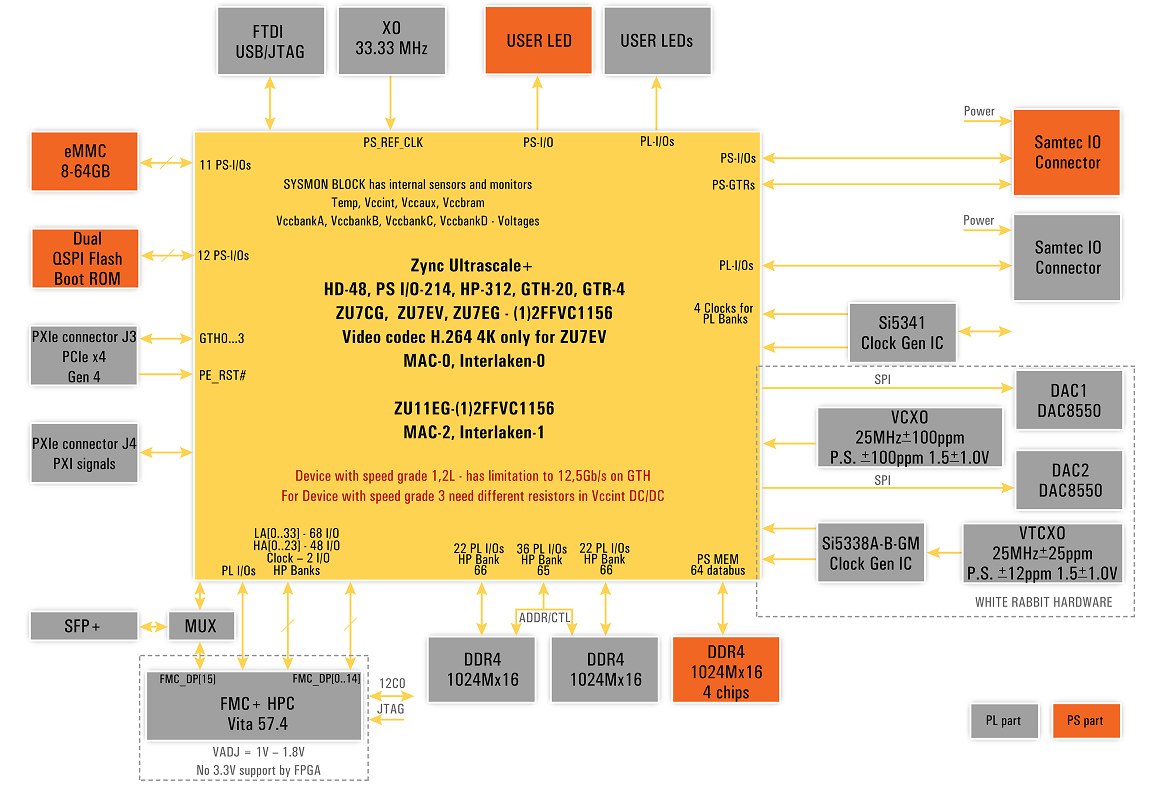

PXIe840 block diagram 3D view with FMC+ & IO card







PXIe840 is going through its final stages of PCB design and will be shipping in Q3 of 2023. Orders are accepted at this time, please contact us at sales@sundancedsp.com for further details.

PXIe840-xyy-z-t

x  = 7 or 11 in the case of EG only

yy = CG, or EV or EG

Z = speed grade which by default is -2 but -1 can be selected.

t = temperature grade. Default is -E which is extended but  -I (industrial) can be selected
