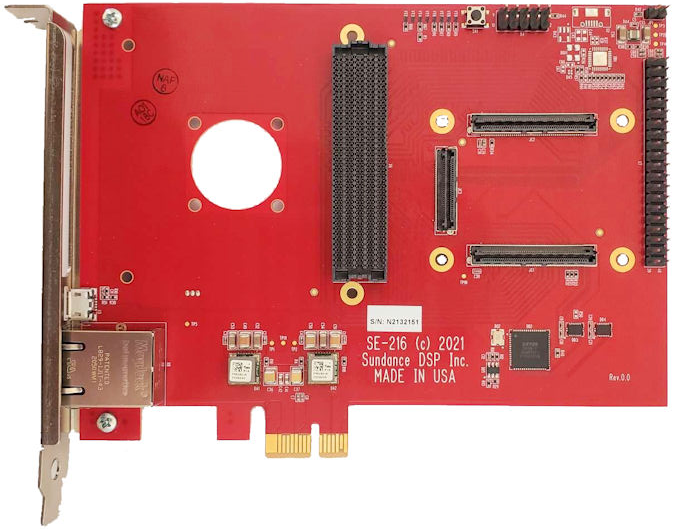

SE216 is a PCIe development board for SOM3 modules . It is a simpler version of SE215 carrier and offers X1 Gen2 PCIe interface. It includes JTAG and UART, through a micro USB connector. The card provides Power GOOD and user LEDs for rapid debugging. A High Pin Count (HPC) FMC site is also available. USB AB, RJ45 and GPIO header pins are also on board.
A power jumper (B4 jumper) can change the Bank 4 IO between 1.8 and 2.5V.
A reset button to reset the FPGA logic is included.
This is a low cost FPGA carrier card for rapid application development and debugging. SOM3 module is based on Polarfire FPGA with high security. A modified version of this carrier can be used with Polarberry SOM.
Features
- Slot for SoM3-MPFxxxT module (MPF300T-1FCVG484 FPGA)
- USB – JTAG and USB – UART bridge via FT4232H IC, connector – micro USB;
- FMC HPC Vita 57.1 connector for functional extension, with 3 gigabit lanes;
- FMC VADJ supported 1.2V, 1.8V, 2.5V;
- RJ45 connector for 100/1000Mbit Ethernet connection*;
- PCIe x1 Gen 2 EP for communication with PC,
- Three LEDs for power GOOD;
- Five User LEDs for debug purposes;
- One user reset button;
- Temperature range, -10°C to +100°C; for industrial version
- Maximal power consumption, including FMC LPC, is 15W;
Applications
- Defense
- Control
- Instrumentation and testing
- Embedded and Indsutrial

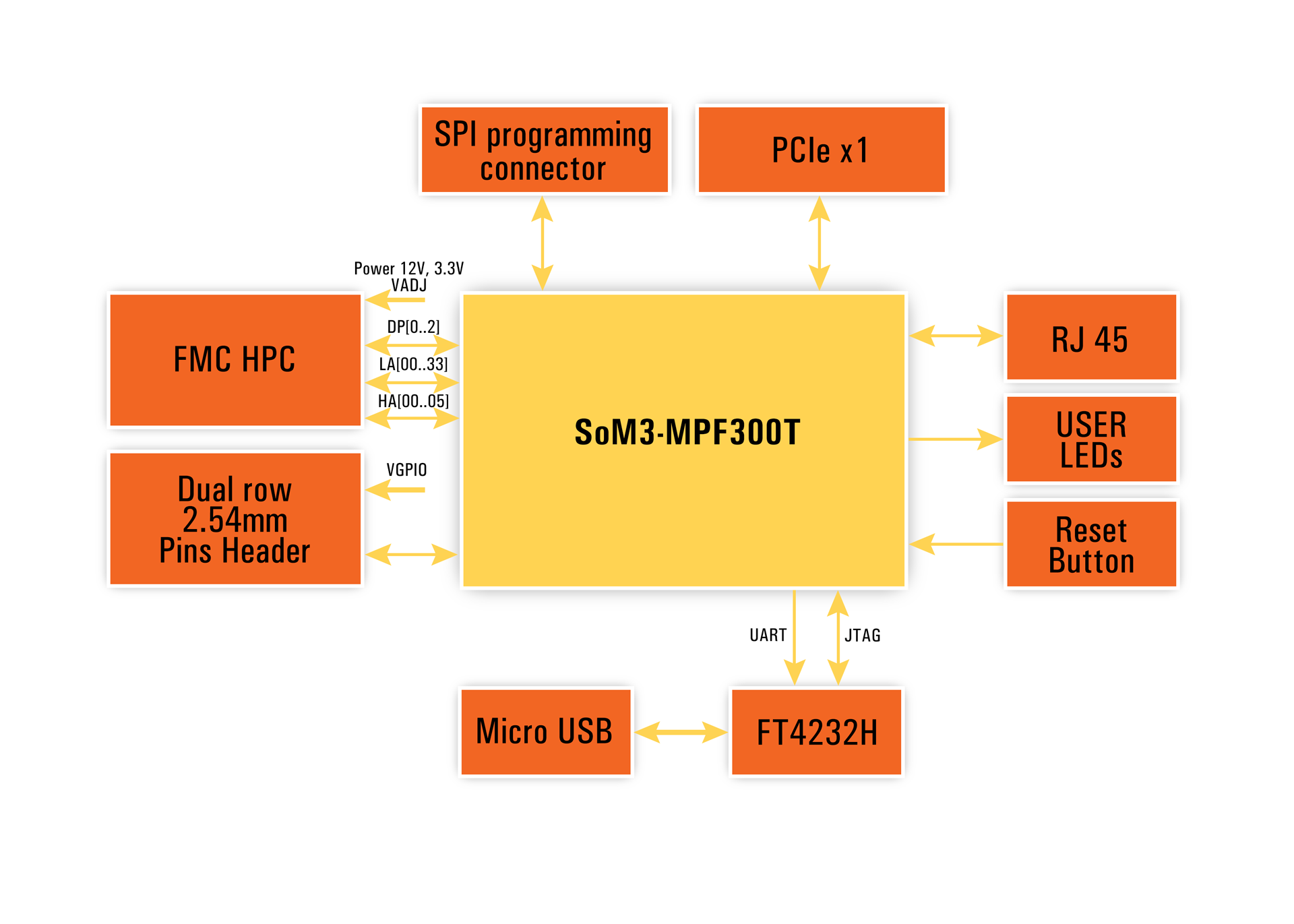

SE216 Block diagram

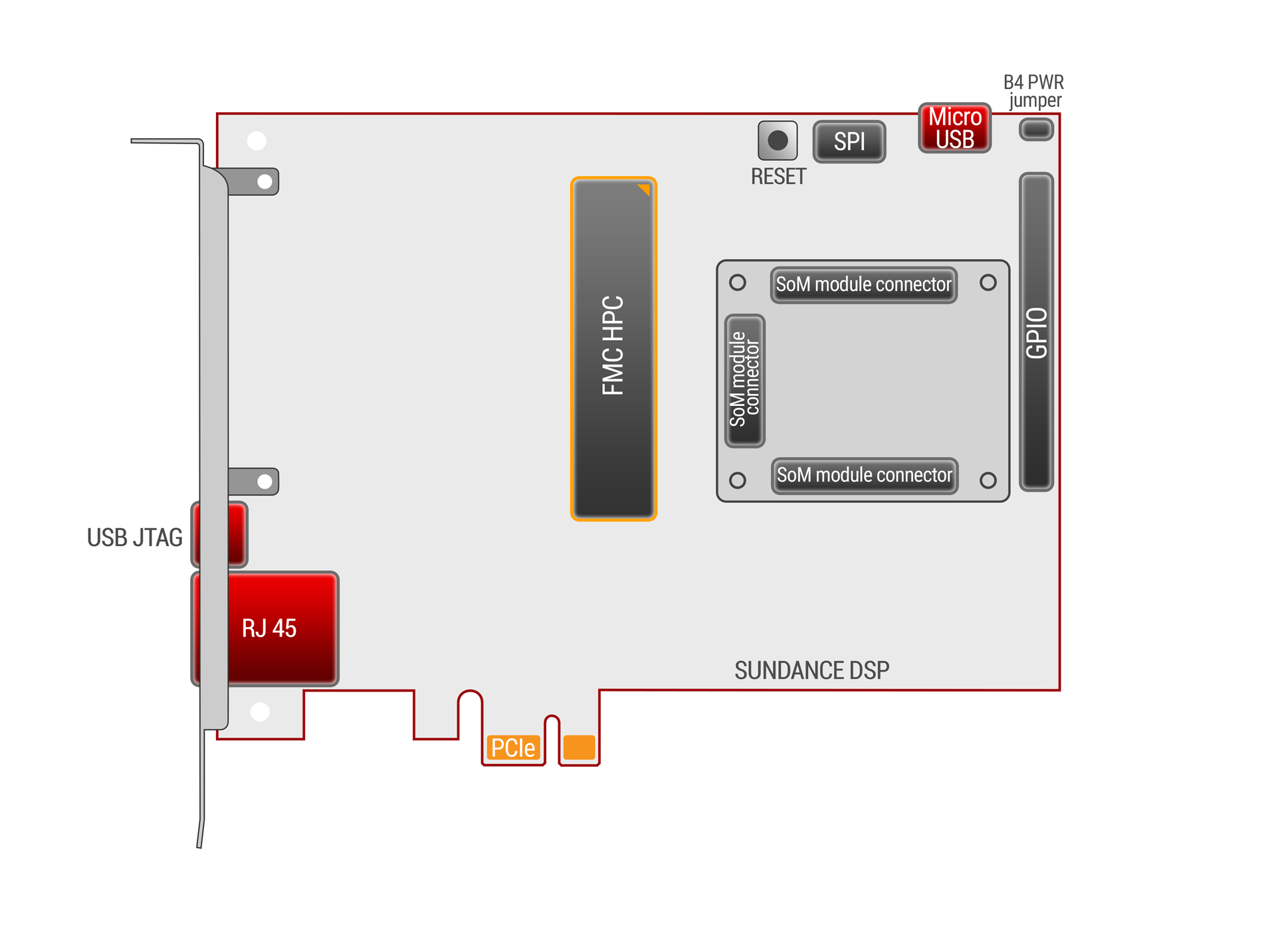

SE216 Placement diagram
Example Libero project and confidence test application will be provided, including driver from Microchip.
SE216 the carrier card without the SOM3 module
SE216-eval SE216 + SOM3-MPF300T
