This board is an interposer/adapter between VNX+ 19mm 400 pin SBCIO PIM (Plug In Module) and Open VPX SOSA PIC with profile MOD3-PAY-1F1F2U1TU1T1U1T-16.2.15-1.
It facilitates insertion of a VNX+ module to VPX slot. It is just passive card with no active and power components.
Features
- inerfaces VNX+ modulles to VPX
- VNX+ module will fit within VPX chassis envelope.
- SOSA compatible PIC connectors: MOD3-PAY-1F1F2U1TU1T1U1T-16.2.15-1 profile like.
- VNX+ 19 mm 400 pin SBCIO carrier connector to accept 19mm PIM.
- Most connections are 1 to 1.
- Control plane of OVPX CPtp connected to Ethernet port lanes of VNX+;
- S2 Overlay Mezz I/O pins of VNX+ will be routed to XMC – total 21 pairs;
- S2 Video plane will be routed to Video plane of Open VPX;
- USB 3.0 port and USB 2.0 port 2 will be routed;
- SATA port 1 will be routed;
- Power LEDs – for 12V, 5V, 3.3V power rails indications;
- Temperature range is 0°C to +70°C for extended temp and -40 to 85 for industrial grade.
Applications
- Rapid firmware/hardware development and testing
- High-performance data acquisition and signal processing
- Multi-chassis system integration

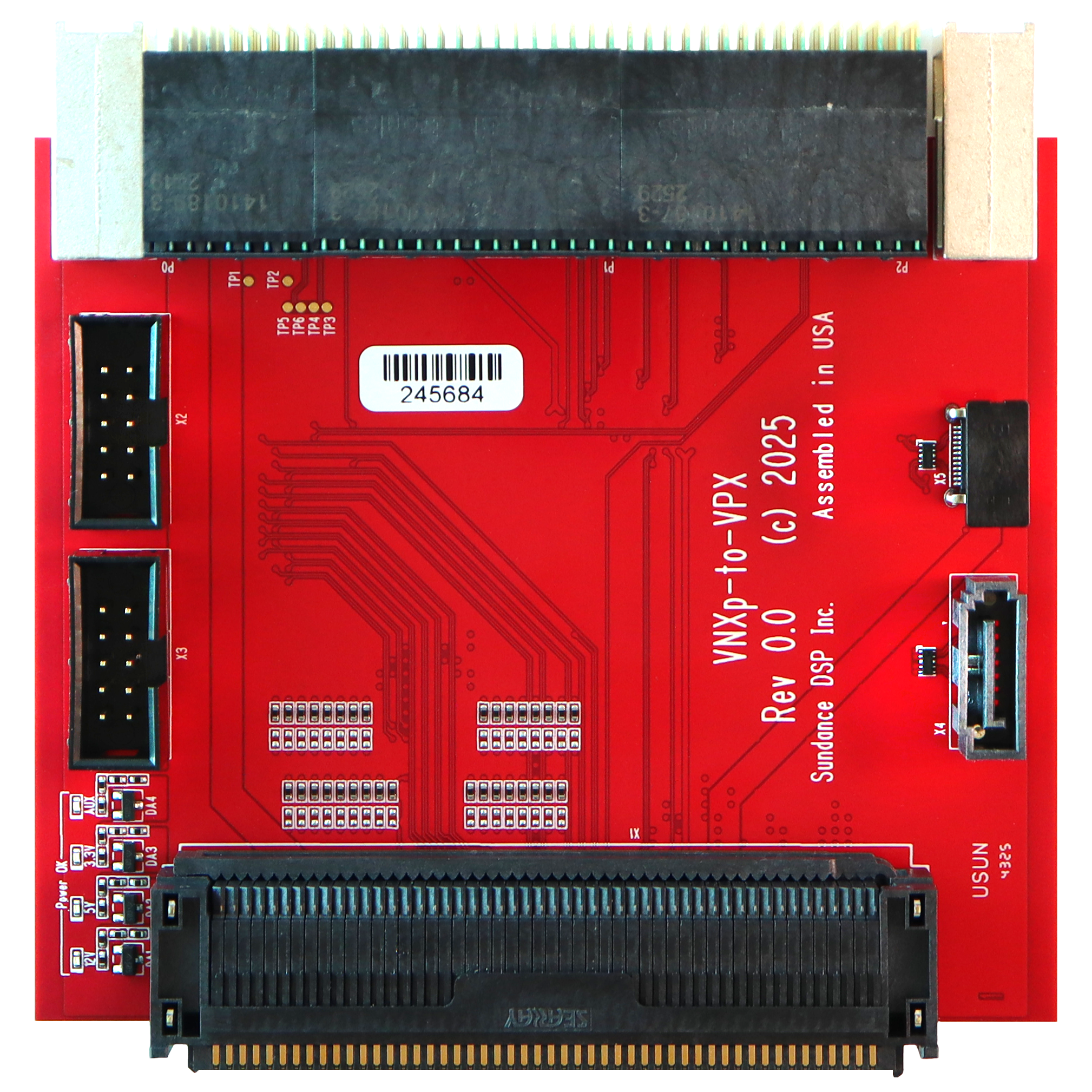

| VNX+to-VPX front | VNX+to-VPX solder side |

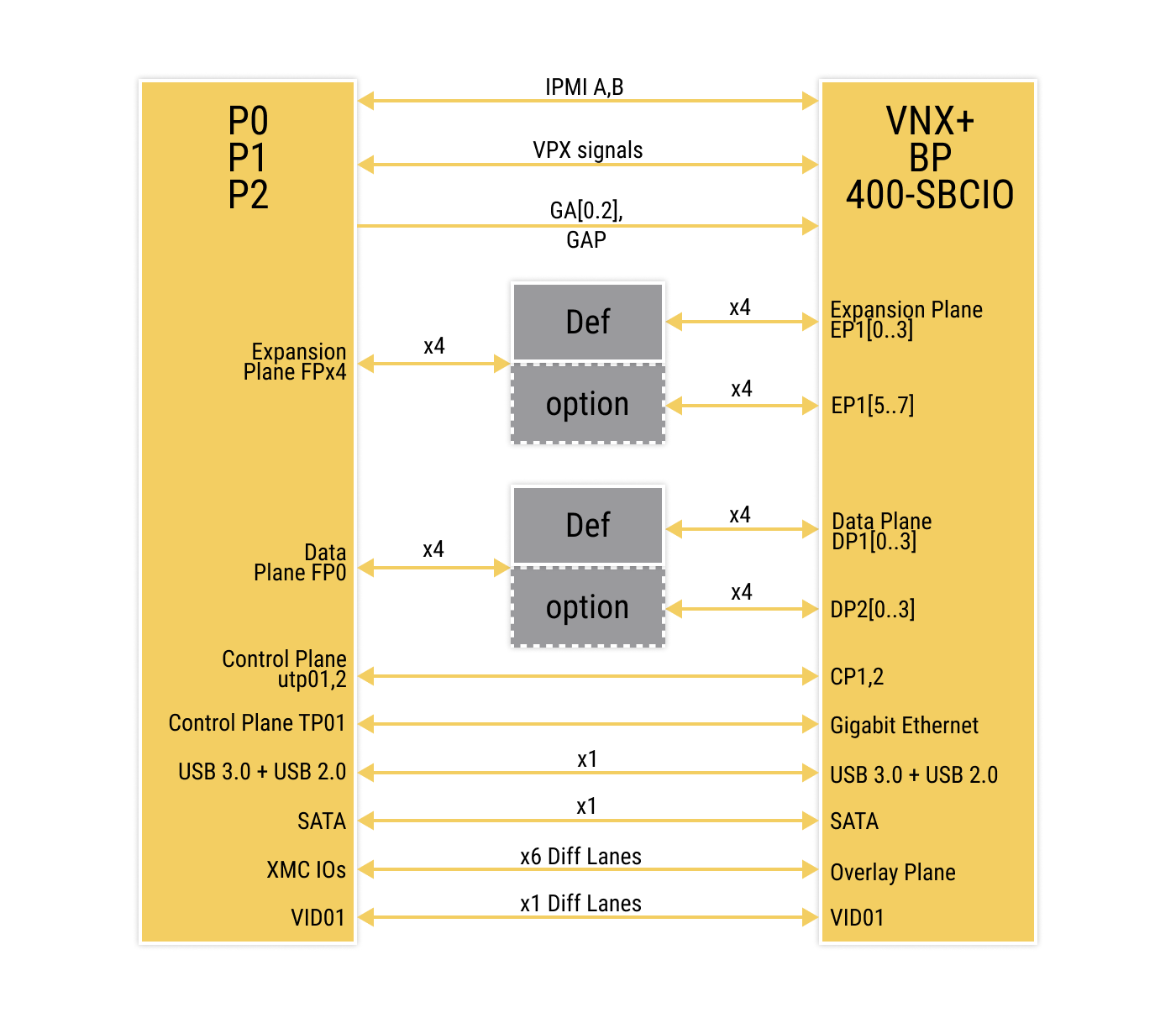

Block Diagram

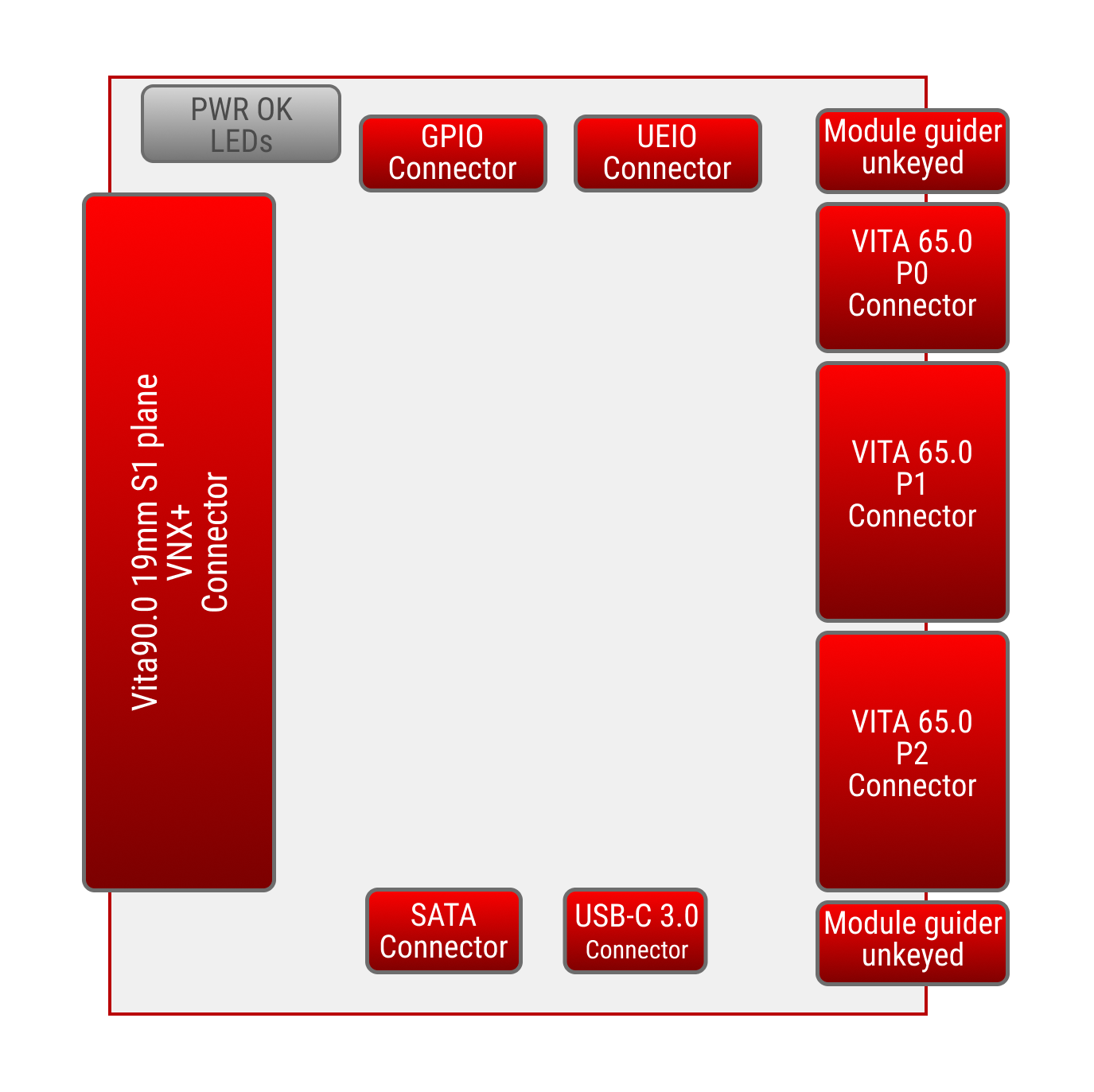

Placement Diagram
No BSP is available for this product.
